Study Area

Suzhou City is in the southern plain of Jiangsu Province, China. It is characterized by several water systems and has a mild climate, distinct seasons, and abundant rainfall. A water transportation system is present in this region, which is often referred to as a “water village”. Suzhou has experienced rapid urbanization and has a complex construction environment. This urban expansion has contributed to increased impervious surface areas, leading to various environmental and socio-economic concerns.

Therefore, there is a need to map high-efficiency and high-precision impervious urban surfaces in this region. However, separating water from impervious surfaces with low spectral reflectance is challenging, and bare soil and impervious surfaces are often easily conflated. Furthermore, extracting small water bodies is a difficult task. Thus, two regions in the built-up area of Suzhou and the city fringes (with more bare soil and small water bodies) were selected as the experimental areas (Fig. 1).

Fig. 1A) shows a portion of the built-up area. The study site comprises various ground objects, such as water bodies, polluted water bodies, buildings, roads, vegetation, and bare soil. The image size in this figure is 742 × 824 pixels. Fig. 1B) represents the urban fringe areas. The region is covered in bare soil, small water bodies, and densely packed buildings. The image size here is 775 × 834 pixels.

Hyperspectral Data Reprocessing

Zhuhai Orbit Corporation provided the hyperspectral remote sensing images of Suzhou City used in this study (https://www.myorbita.net) on October 1, 2018. The second batch of Zhuhai-1 microsatellites was successfully launched on April 26, 2018. This batch included four Orbita hyperspectral satellites (i.e., OHS-A, OHS-B, OHS-C, and OHS-D) and one video satellite (i.e., OVS-2A) with excellent hyperspectral data acquisition abilities. The hyperspectral satellite camera can obtain images with a 10-m resolution, 150-km width, and 32 spectrum segments. The single-start continuous sweeping work time was no less than 2 min, and the one-track working time was no more than 8 min, with a global coverage ability within 5 days [33]. Rich spectral information is important for the extraction and classification of the features of ground objects. The spatial scale of the image was suitable for city-wide research.

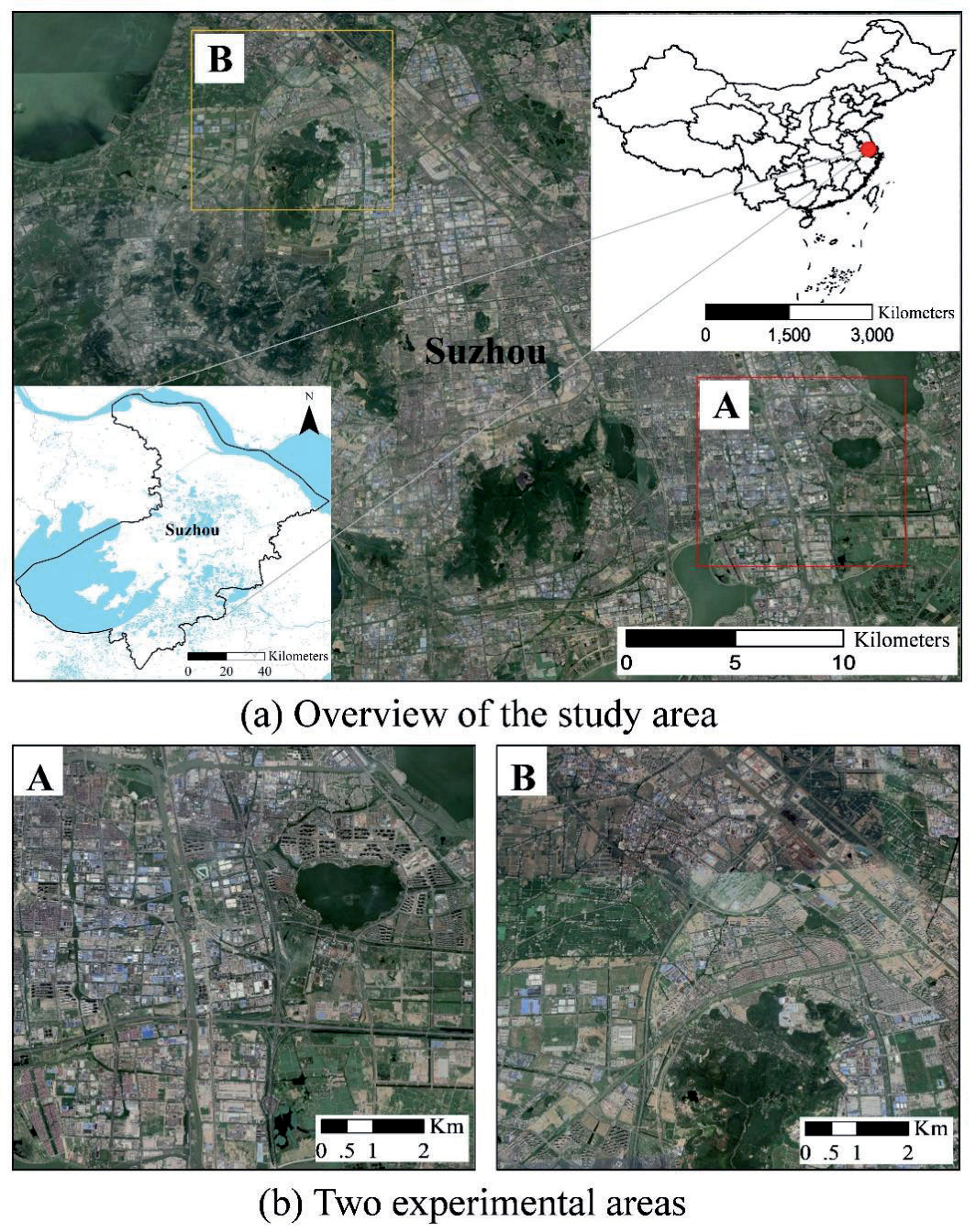

Fig. 1.

Overview of the study area with a) a built-up area and b) an urban fringe.

Radiation calibration, atmospheric correction (ENVI Fast Line-of-sight Atmospheric Analysis of Hypercubes (FLAASH) module), and orthographic correction were carried out on hyperspectral data. Additionally, Gaussian low-pass filtering was used to filter orthographic hyperspectral images and eliminate the effect of geometric distortion and noise in satellite imaging. Hyperspectral data were geographically registered with GF-1 data, leading to a one-to-one correspondence of the spectral features to the classification labels. Minimum noise fraction rotation (MNF) transformation was performed on the hyperspectral data to eliminate redundancy and reduce the number of calculations during classification. The amount of hyperspectral data used in this experiment was large. Therefore, we concentrated on the remote sensing feature information within a few bands. The first eight bands, with a contribution rate greater than 75%, were used as the remote sensing spectral features in this study. The spatial co-occurrence measures of hyperspectral remote sensing images in the study area were calculated to obtain the spatial texture information. This was done to achieve spatial spectrum integration and fully extract spectral information from the optical remote sensing images. Fig. 2 shows the hyperspectral curves of several typical features of Zhuhai-1 after data reprocessing.

SAR Data Reprocessing

The Sentinel-1 radar data was provided by the European Space Agency (https://search.asf.ala-ska.edu). The primary imaging time was October 1, 2018, while the secondary imaging time was November 6, 2018.

The radar backscatter intensity and radar interference information supplement the thematic information of the urban features. Backscatter intensity data were obtained after radiometric calibration on October 1, 2018. Additionally, we obtained interference coherence from the long-time-baseline (35 days) interferometric radar signal using the differential interferometry synthetic aperture radar (D-InSAR) process [34]. The fusion of Sentinel-1 radar feature data and Zhuhai-1 hyperspectral feature data was used as mapping data, and the tree-based ensemble-learning algorithm was used to extract impervious urban surfaces. The process is shown in Fig. 3.

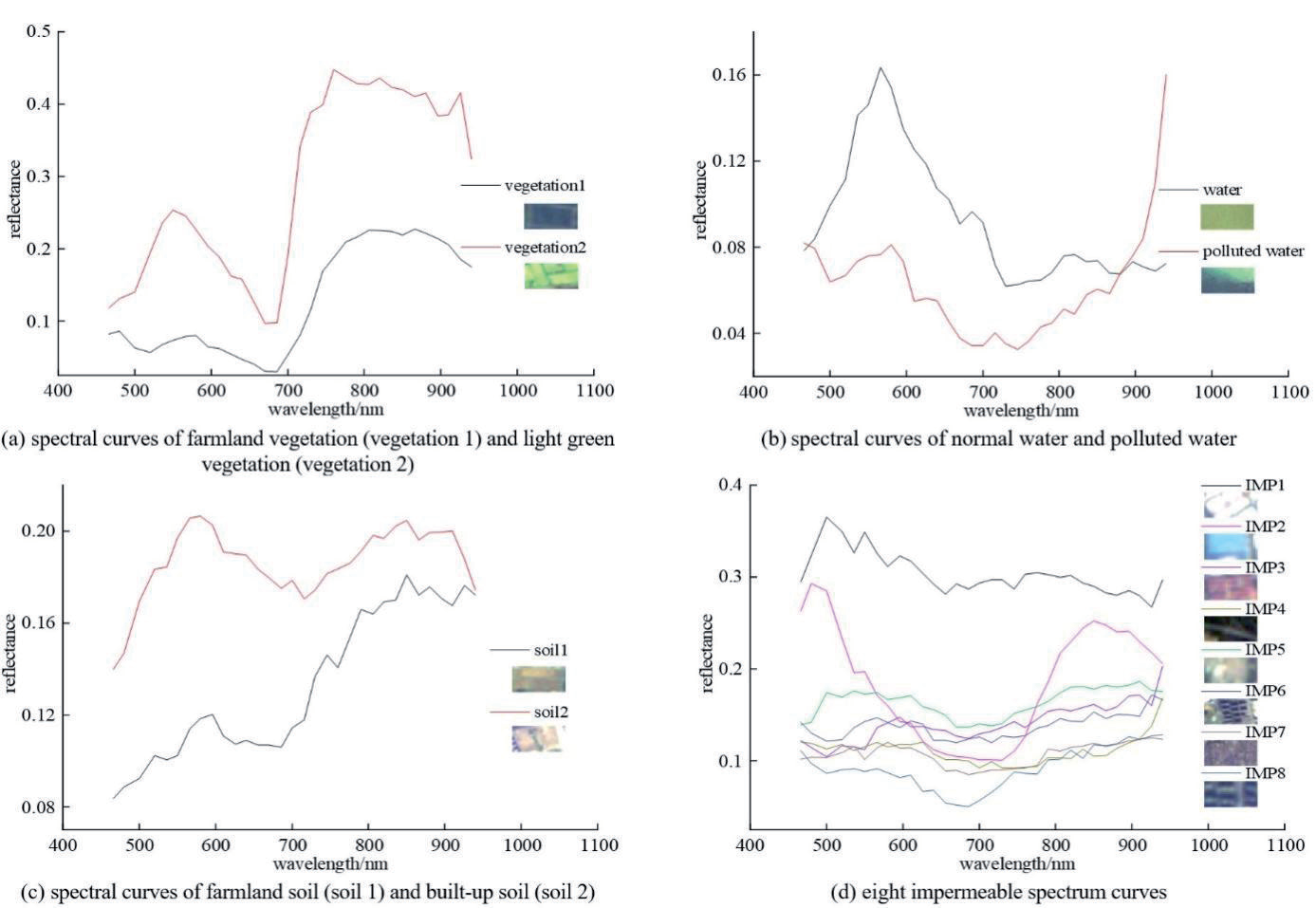

Fig. 2.

Hyperspectral curves of typical features of Zhuhai-1.

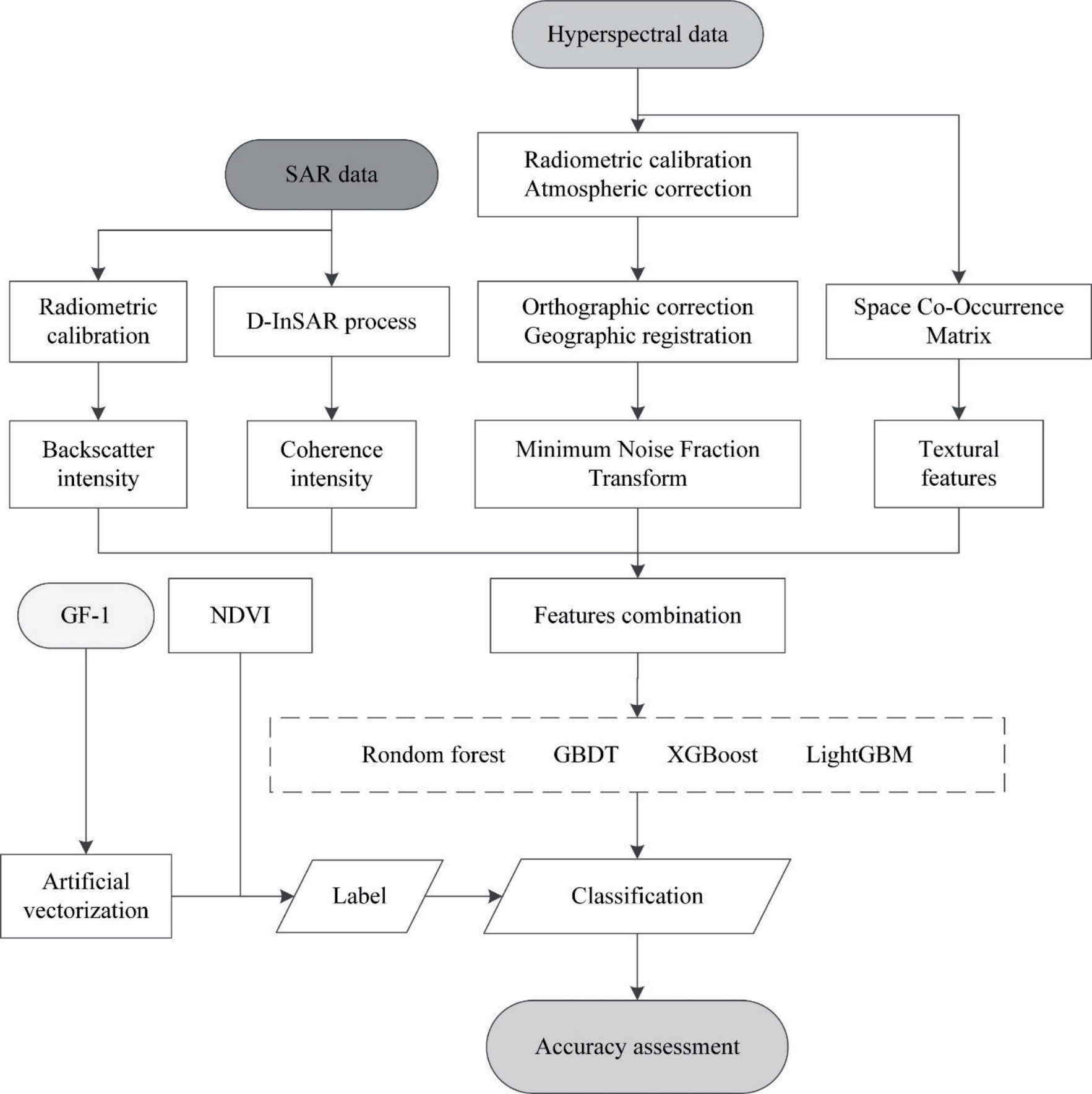

Fig. 3.

Flowchart of the process of this study.

Artificial Vectorization Label

GaoFen1 (GF1), China’s first high-resolution Earth observation satellite, was launched in April 2013. This satellite has one panchromatic sensor and four wide field-of-view (WFV) sensors [35]. A single image collected by one sensor has a swath of nearly 200 km.Therefore, when all four sensors collect images simultaneously, an area with a total width of 800 km can be covered, allowing the satellite to achieve global coverage in four days [36].

We acquired GF-1 data from the study area during the survey period. The data were fused with the panchromatic and multispectral bands, followed by ortho-correction. The processed GF-1 data (with a spatial resolution of 2 m) was artificially vectorized. The land cover in the study area was then divided into three types: impervious surfaces, permeable surfaces, and water surfaces (Fig. 4). In this study, the intensity data, the coherence intensity map, and vectorized labels were resampled to a spatial resolution of 10 m to ensure that data fusion and classification evaluation took place under the same spatial resolution.

Principles of the Tree-based Ensemble-Learning Algorithm Using Multi-source Remote Sensing Features

Tree-based ensemble learning is an algorithm that creates a strong assessment model by integrating multiple weak assessment models [37]. It is highly accurate, effective for processing high-dimensional big data, and stable in terms of model training. Each weak learner (decision tree) calculates the gain of each feature during node splitting and selects the feature with the best gain value for splitting.

In this study, the tree-based ensemble-learning algorithm classifies fused multi-source remote sensing feature data pixel-by-pixel to obtain a highly precise and efficient thematic map of impervious urban surfaces. The first eight bands, the 9^th band, the 10^th band, and the 11^th band denote the spectral features, interference coherence characteristic magnification with a value scaled up by 100-fold, backscatter intensity, and the spatial texture features, respectively (Fig. 5). The results show that impervious surface objects have high coherence (with coherence coefficients greater than 0.5). Bare soils in built-up areas and polluted waters have high coherence and unique spectral characteristics, whereas general natural ground objects have low coherence. Thus, the fusion of SAR data features and Zhuhai-1 hyperspectral data enhanced the selection of the segmentation node of the tree-based ensemble-learning algorithm.

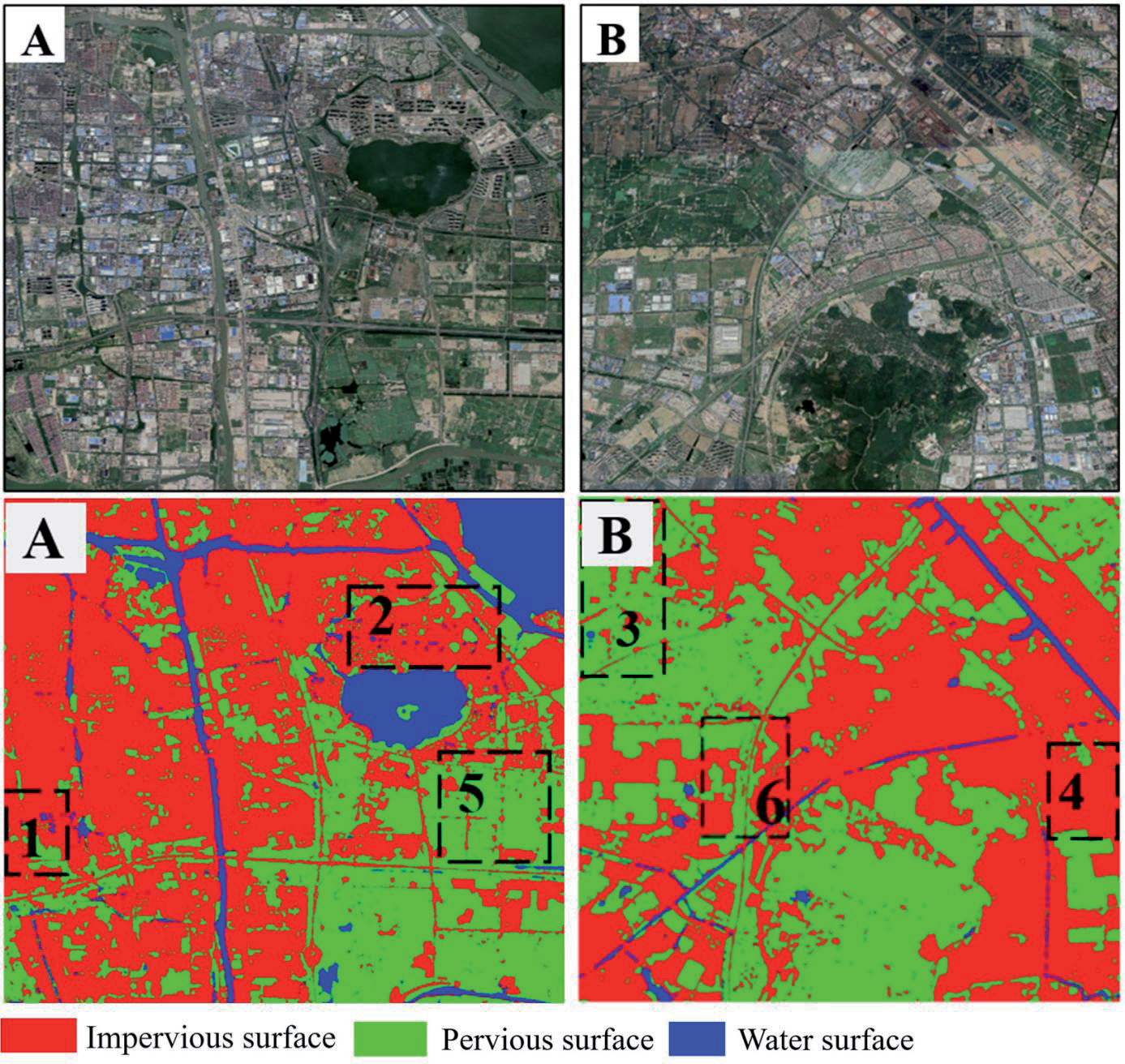

Fig. 4.

Results of artificial vectorization labeling for (a) a built-up area and (b) an urban fringe.

Principle of the XGBoost Algorithm

GBDT is a tree-based ensemble algorithm that builds an integrated prediction model through the gradient boosting process. The specific principle behind this algorithm has been expounded in previous research [38]. In comparison to the classic GBDT, XGBoost has significantly better performance. Firstly, GBDT expands the objective Taylor function to the first order, while XGBoost expands the objective Taylor function to the second order. More information about the objective function is retained, which improves the performance. Secondly, XGBoost introduces the regularization term in the objective function to prevent overfitting. The principle of the algorithm is as follows:

Loss function

(1)

L=∑inl(yi,yi^)

where n, ŷ, and y are the number of input training samples, predicted value, and label, respectively.

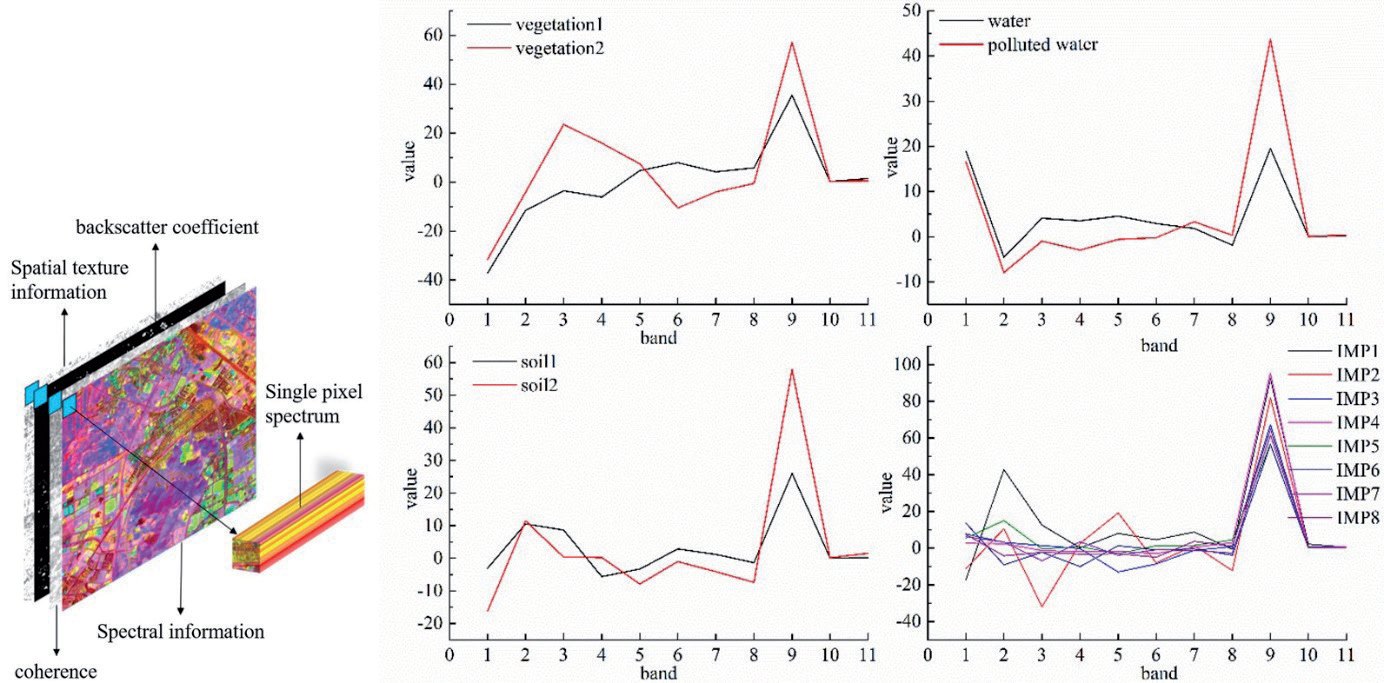

Fig. 5.

Typical features of multi-source remote sensing (Fig. 4 ground objects correspond to Fig. 2).

Objective function

(2)

Obj=L+Ω(θ)

where Ω(θ) is the regularization term to prevent model overfitting. The objective function uses T-base classification tree models: {f₁ f₂ ... f_T}. We assume that the predicted value of the i-th input sample is y^i=∑t−1Tft(xi), where x_i is the input sample and ŷ_i is the corresponding predicted value. Therefore

(3)

Obj=∑inl(yi,yi^)+∑t−1Tθ(ft)

Ensemble-learning algorithms use errors as optimization criteria. Taylor’s second-order approximation expands the loss function to establish a link between the node-splitting guidelines of the binary tree model and the objective function:

(4)

∑i=1nl(yi,yi^T−1+fT(xi))=∑in[l(yi,yi^T−1)+l′(yi,yi^T−1)fT(xi)+12l′′(yi,yi^T−1)fT2(xi)]

The XGBoost algorithm is shown in Fig. 6.

Sample Data

The urban cover in the study area is divided into impermeable surfaces, permeable surfaces, and water surfaces (with a ratio close to 1:1:1). We used manual interpretation to select the training samples and classification evaluation samples based on field survey data and high-resolution GF-1 images obtained during the survey period. Data were scrambled and dichotomized into “train” (66.7% of the data) and “test” (33.3% of the data) sets. Details of the selected samples are given in Table 1.

The range of common hyperparameter values for the ensemble algorithms used is shown in Table 2.

Experimental Results and Accuracy Assessment

We carried out eight comparative tests to demonstrate the superiority of the LightGBM model using multi-source remote sensing features. The four algorithms performed surface extraction experiments on the single-source spectral feature data and multi-feature remote sensing data. Pixel-level classification caused a salt-and-pepper effect; therefore, post-classification processing technology eliminated false pixels generated during classification.

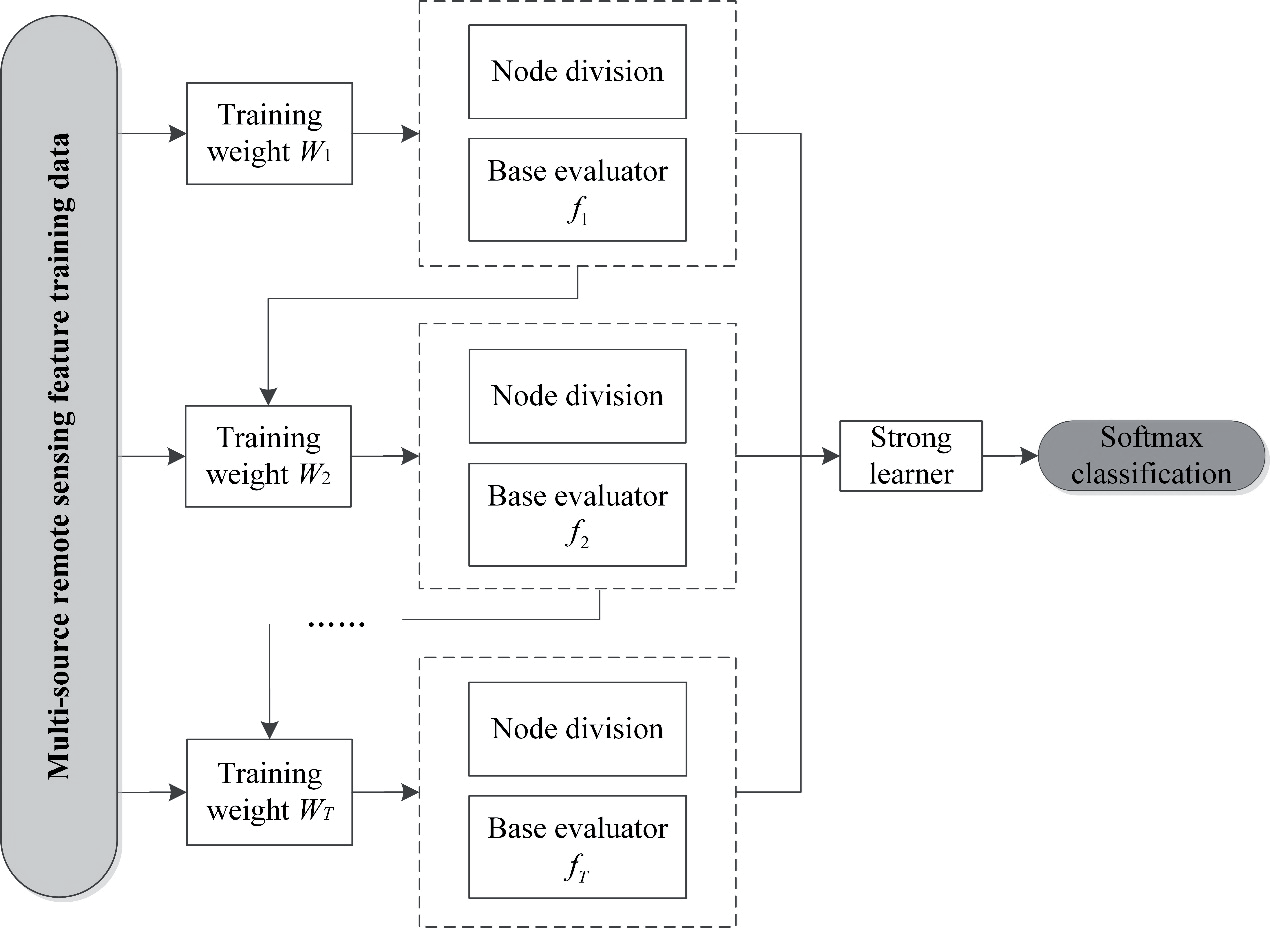

Fig. 6.

XGBoost algorithm flowchart.

As indicated by tags 1-4 in Fig. 8a), the random forest algorithm – which fused multi-source remote sensing feature data – was used to map the impervious surface. This algorithm mistakenly classified impervious urban surfaces with low reflectances as water surfaces. The GBDT, XGBoost, and LightGBM algorithms, based on the gradient boosting tree algorithm, give better descriptions of the edge information of the urban cover than the random forest algorithm (tag 5 in Fig. 8). Additionally, these algorithms retain the structural information of impermeable surfaces better and greatly reduce the conflation of impermeable surfaces and water surfaces compared with the random forest algorithm. The XGBoost and LightGBM algorithms performed better in dividing bare soil and buildings, with the lowest misclassification and improved retention of edge information, as shown by the true label with tag 6. The XGBoost and LightGBM algorithms expand the objective Taylor function to the second order. This retains more information about the objective function, which improves the performance. However, overly small water bodies were difficult to extract from remote sensing data based on a 10-meter spatial resolution in urban boundary areas. Further, discriminating between bare soil and impervious surfaces was challenging.

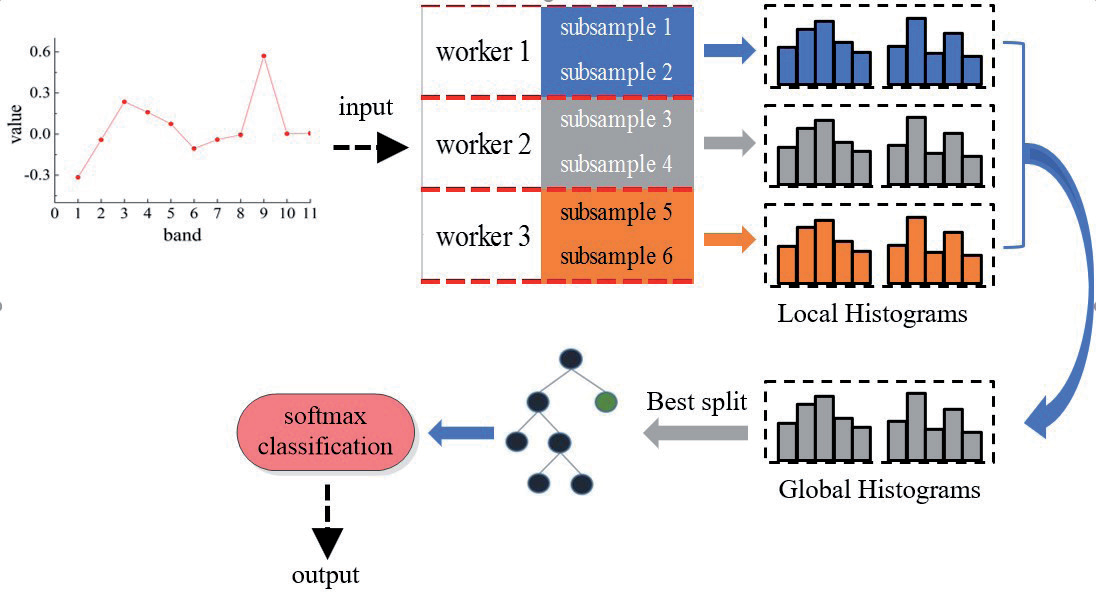

Fig. 7.

LightGBM algorithm flowchart.

We quantified the mapping precision of extracting the urban cover to quantitatively analyze the extraction effects of the four algorithms. The extraction results of the four ensemble-learning algorithms used in this study were compared with the real labels. Table 3 provides discernible information regarding four pixel-based classifiers. The random forest algorithm had the highest misclassification rates, with 2.12%, 2.04%, and 0.09% errors in terms of impervious surfaces, pervious surfaces, and water surfaces, respectively. The XGBoost and LightGBM algorithms performed better in terms of mapping the impervious urban surfaces with multi-source remote sensing data. Notably, LightGBM was found to be the best classification model, with 1.56%, 1.33%, and 0.22% errors in the impervious surfaces, pervious surfaces, and water surfaces, respectively.

Result Analysis

The overall accuracy (OA) and Kappa coefficient of the four ensemble-learning classification model methods were calculated using a confusion matrix. The coefficient measures the results of the impervious surface extraction. The analysis showed that the four ensemble-learning algorithms fused multi-source remote sensing features and improved impervious urban surface mapping performance compared to only using spectral features (Table 4). From Table 4, it can be seen that compared to the single-source data, the OA of the LightGBM using multi-source remote sensing features was improved by 3.6% and 4.6% in the built-up areas and urban fringes, respectively. Furthermore, the Kappa coefficient was increased by 0.014 and 0.017 in the built-up areas and urban fringes, respectively. In the single-source spectral data extraction process, these models ignored the homologous heterospectra and homospectral foreign objects in the complex urban environment. However, radar backscatter intensity information and radar interference information supplement the thematic information regarding urban features.

Based on the gradient boosting tree algorithm, the GBDT, XGBoost, and LightGBM algorithms performed better than the random forest algorithm [39-41]. The XGBoost algorithm performed better than the GBDT. Firstly, the loss function of the XGBoost expanded by Taylor’s second-order approximation is more precise than Taylor’s first-order approximation. Moreover, depending on the leaf node weight and the tree depth, the complexity of the binary tree model in XGBoost differs. LightGBM was more efficient than XGBoost, with a 235.4- and 257.7-second improvement in the built-up areas and urban fringes, respectively. The LightGBM algorithm uses a histogram optimization method to discretize the feature data, unlike the XGBoost algorithm. The histogram optimization method alleviates the limitation whereby the split nodes in the base classification model need to sort all the feature data.

In summary, the LightGBM algorithm using multi-source remote sensing features achieved optimum results with 93.2% and 92.1% OA in the built-up areas and urban fringes and 0.885 and 0.845 Kappa coefficients in the built-up areas and urban fringes, respectively.

Classification of Images

Considering previous studies, remotely sensed data used for impervious classifications could be classified into three types based on spatial resolution: coarse, medium, and high [42]. Because of their high temporal resolution, coarse spatial-resolution data (e.g., MODIS) are only suitable for large-scale remote sensing applications or as an auxiliary source for local and regional data [43]. Medium spatial-resolution data (e.g., SPOT4 and Landsat) can be applied in regional land-cover classification, which comprises a large number of mixed pixels because of the presence of complex ground coverings. High-spatial-resolution data (e.g., WorldView, IKONOS, and QuickBird) could help acquire accurate ground-object classification in complex urban environments. Moreover, previous studies have used remote sensing image series to improve classification accuracy. However, spectral data is easily affected by clouds and weather, resulting in issues with satellite imaging. Instead, a uni-temporal image could rapidly establish a regional impervious map with fewer restrictions and less data computation [42]. Furthermore, the hyperspectral data could remove the limit on the number of end members available. Therefore, we selected uni-temporal Zhuhai-1 hyperspectral data (spatial resolution of 10 m and 32 bands). This strategy utilizes both spectral and SAR data [13, 14], improving the classification accuracy compared to only using the spectral features from a single satellite sensor. Using hyperspectral data in complex urban environments, the latter ignores the homologous heterospectra and homospectral foreign objects.

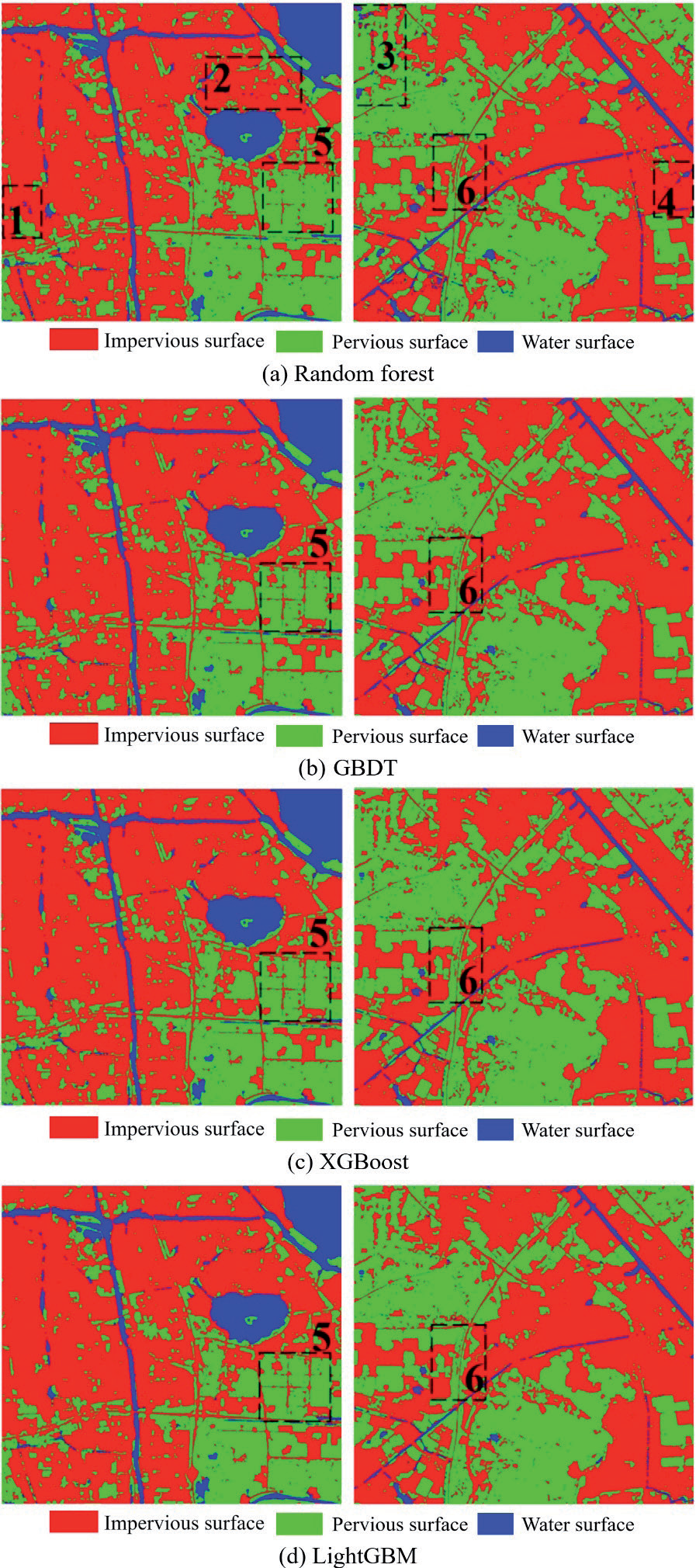

Fig. 8.

Classifiication results of the four ensemble-learning algorithms.

Classification Methods

In previous studies, image classification methods applied in impervious classifications include sub-pixel-based methods (e.g., the V-I-S model) [22], object-based methods [43], and machine learning algorithms [23-26]. Nevertheless, sub-pixel-based methods are only suitable for an original low-resolution image. Users should know how to select the segmentation scale and which features must be selected before using an object-oriented method. These two factors substantially determine classification accuracy and computational efficiency [44]. ML-based approaches (e.g., SVM, CNN, tree-based ensemble-learning algorithms) applied to high-resolution images have high classification accuracy. Furthermore, tree-based ensemble-learning algorithms are more effective than other ML-based approaches [27- 29]. Notably, LightGBM is the most efficient among tree-based ensemble-learning algorithms because it uses a histogram optimization method to discretize the feature data, improving the algorithm’s efficiency. Previous studies have evaluated other machine learning algorithms for impervious surface mapping with approximately 90% accuracy [45]. Although the extraction effect is comparable, the mapping process takes longer to achieve higher accuracies. Therefore, the LightGBM algorithm uses multiple remote sensing features for complete impervious urban surface mapping with high precision and efficiency compared to those reported in previous studies.

Classification Results

Impervious urban surfaces are key factors that shape urban ecological environments [46, 47]. Research into high-precision and high-efficiency impervious urban surface mapping methods is important for guiding the construction of urban ecological environments [48, 49]. The results of this study show that the fusion of Zhuhai-1 spectral features, spatial texture features, and SAR data features improves the precision and efficiency of the extraction of impervious urban surfaces. The fusion had an overall accuracy of 93.2% in the built-up areas and 92.1% at the urban edges. Our methods rely on spectral features, spatial texture features, and SAR data features obtained from hyperspectral images and radar data. Therefore, they can be used in different urban environments. The findings of this study provide information for the application of ensemble-learning algorithms in automated remote sensing applications [50].

The random forest algorithm using only spectral features provides a satisfactory classification effect for impervious surfaces, with an OA value of 84.6%. This is important when considering using spectral sensors to map impervious surfaces. However, ensemble-learning algorithms based on gradient boosting have better mapping effects. Combining multi-source remote sensing features could achieve a higher segmentation effect when classifying impervious urban surfaces than only using spectral features. Mapping permeable surfaces and water surfaces could yield different results. The mapping error percentages of the GBDT algorithm, XGBoost algorithm, and LightGBM algorithm after adding the SAR feature and texture feature data were relatively close (1.83%, 1.56%, and 1.56%, respectively). Furthermore, adding the SAR and texture feature data improved the OA of the random forest algorithm, GBDT algorithm, XGBoost algorithm, and LightGBM algorithm by 5.9%, 4.9%, 3.5%, and 3.6% in the built-up area, respectively. Moreover, the algorithm using multi-source remote sensing features also performed better than a single source for urban fringes. Thus, SAR data features and spatial texture features improve classification accuracy. However, the addition of the SAR feature and texture feature data does not eliminate the phenomenon of mixed pixels and spectral confusion. ML is a data-driven approach [51]; therefore, this problem can be alleviated by collecting more training samples at the fringes between the low-reflectivity impervious surface, the low-reflectivity water surface, the impervious surface, and vegetation to facilitate discrimination [52, 53].

On the urban fringes, extremely small water bodies are difficult to accurately extract from remote sensing data based on a 10-m spatial resolution [54, 55]. Although the fusion of multi-source remote sensing features improves the discrimination between bare soil and impervious surfaces, the accurate distinction remains challenging [56].

In this study, the LightGBM algorithm using multi-source remote sensing features exhibited high efficiency and mapping accuracy in extracting impervious surfaces [57].
